HR-2525 High Resolution Horizontal Electrophoresis System

• Gel Dimensions: 25.0 cm (wide) x 25.0 cm (long)
• Maximum Sample Capacity: 300 samples (6 combs, 50 samples ea)
• Buffer Capacity: 1500 ml
• Distance Between Electrodes: 35.0 cm
• Maximum Voltage: 200 V

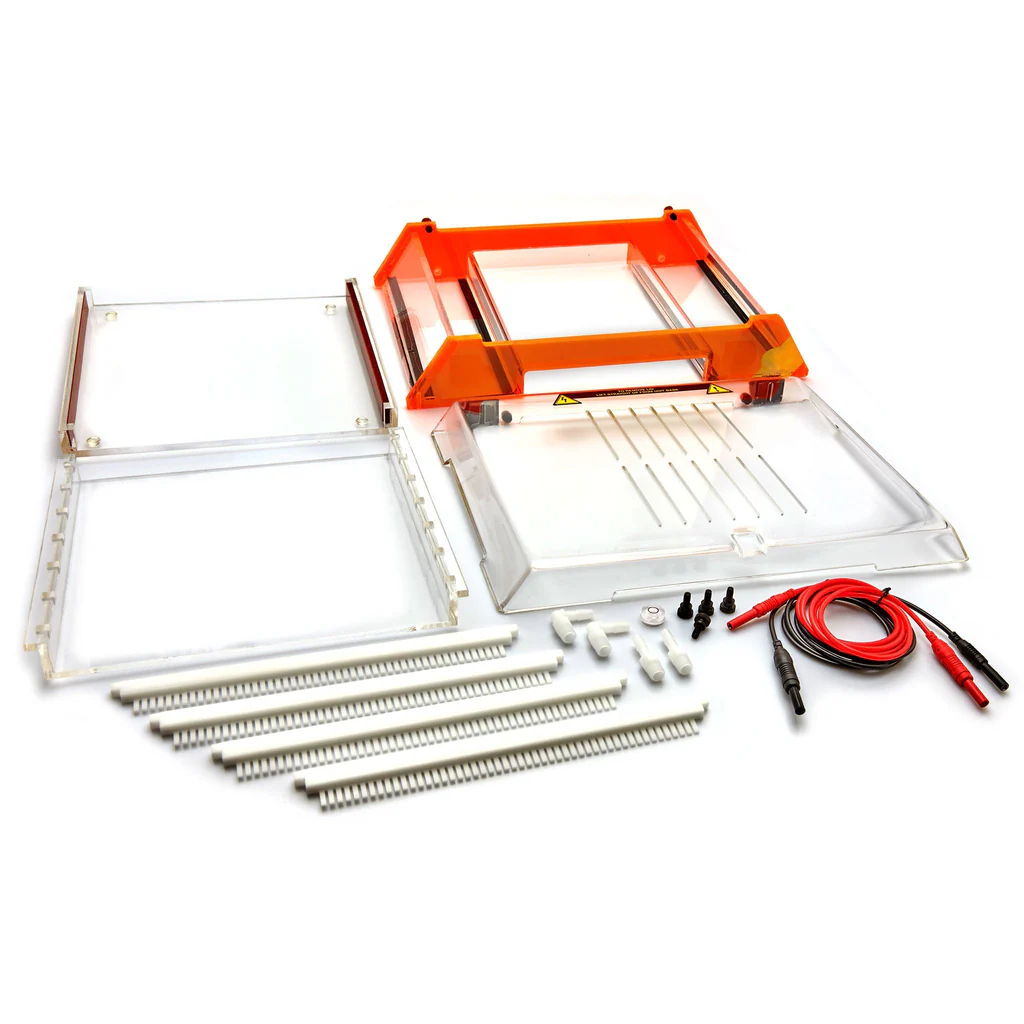

• Comes with: vented lid, UVT casting tray, casting fixture, four 2.0 mm x 50 tooth combs, bubble level, buffer ports, adjustable feet, and power cords

IBI’s HR-2525 High-Resolution/High-Throughput Electrophoresis Box is ideal for separation of nucleic acids in agarose gels. It is designed for rapid screening of PCR fragments, RFLP analysis of plasmid screening, field inversion, genomic DNA separations, and electrophoresis procedures requiring recirculation. Up to 50 PCR 8 strips can be completed in 15 minutes.

The HR-2525 is constructed of durable cast acrylic which stands up to high voltages and extreme temperatures without cracking or warping for years of faithful operation. The combs are machined Delrin™ and come in a variety of configurations that are all multichannel pipette compatible or preparative combs. The quick casting system is based on a compressible gasket for ease of use without the need for adjustments or leaky gates.

The HR-2525 is designed for high resolution electrophoresis. The maximum suggested applied voltage for the electrophoresis of DNA in agarose gels using the HR-2025 is 140 V.

The suggested run parameters for the electrophoresis of RNA in agarose gels containing formaldehyde is 60-80 V.

The IB57000 has a patented vented lid. Patent# 5,779,869.

Unit dimensions:8.3 cm (H) x 26.7 cm (W) x 39.4 cm (L)
Gel Dimensions:25 cm (W) x 25 cm (L)
Max Sample Capacity:300 samples (6 combs x 50 samples ea.)
Buffer Capacity:1500 ml
Distance between electrodes:35.0 cm
Max volt.:200 V

IB57000 - HR-2525 Operation Manual

Characteristics of Horizontal Electrophoresis UnitsIBI horizontal systems are constructed of 3/8” thick cast acrylic, the heaviest in the industry. No warping occurs when the system gets hot, and there are no crazy cracks in the plastic after time. The buffer tank on the IBI systems can be completely re-built, by the end user, in minutes. IBI horizontal systems have a 4-year limited warranty on the buffer tank. IBI horizontal systems allow the user to cast gels OUTSIDE the buffer tank, this is much easier and allows user to cast a gel while a gel is running. IBI systems are 20% less expensive and come with casting system and combs. This info applies to all of IBI horizontal systems against nearly all of our other competitors systems.
